CLS4050RP 8.4V 50KG Super Torque 0.11Sec Speed IP67 Waterproof Coreless Servo Motor Digital Programmable Smart Home Fan Boat

1 / 5

CLS4050RP 8.4V 50KG Super Torque 0.11Sec Speed IP67 Waterproof Coreless Servo Motor Digital Programmable Smart Home Fan Boat

Send Inquiry

Product Description

CLS4050RP 8.4V 50KG Super Torque 0.11Sec Speed IP67 Waterproof Coreless Motor Digital Programmable Servo for RC Car Robot

Features

Programmable PWM Digital Amplifier

32-Bit MCU

High Precision Gear

Wide Operating Voltage (6.0 ~ 8.4 Volts DC)

Dual Ball Bearing Supported Output Shaft

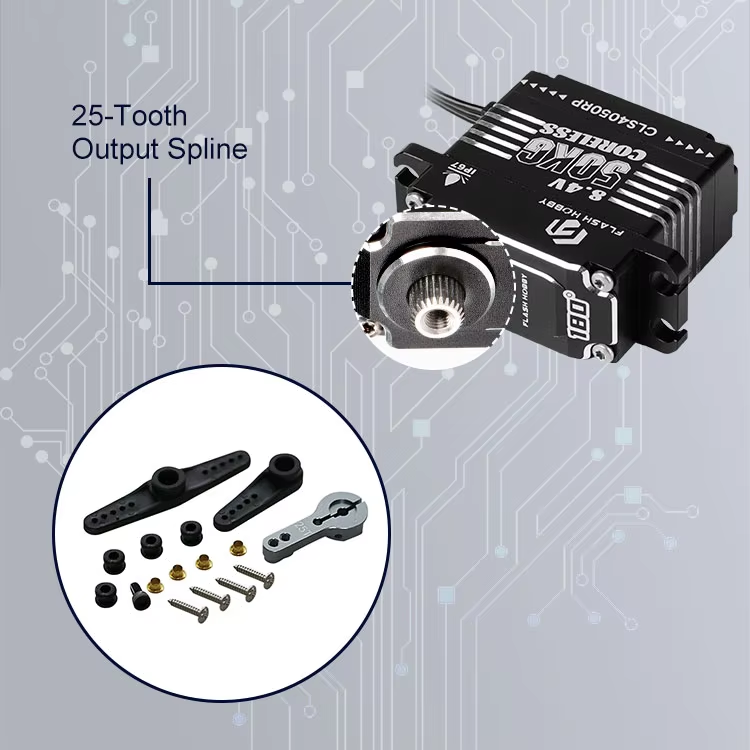

25-Tooth Output Spline

High Quality Coreless Motor

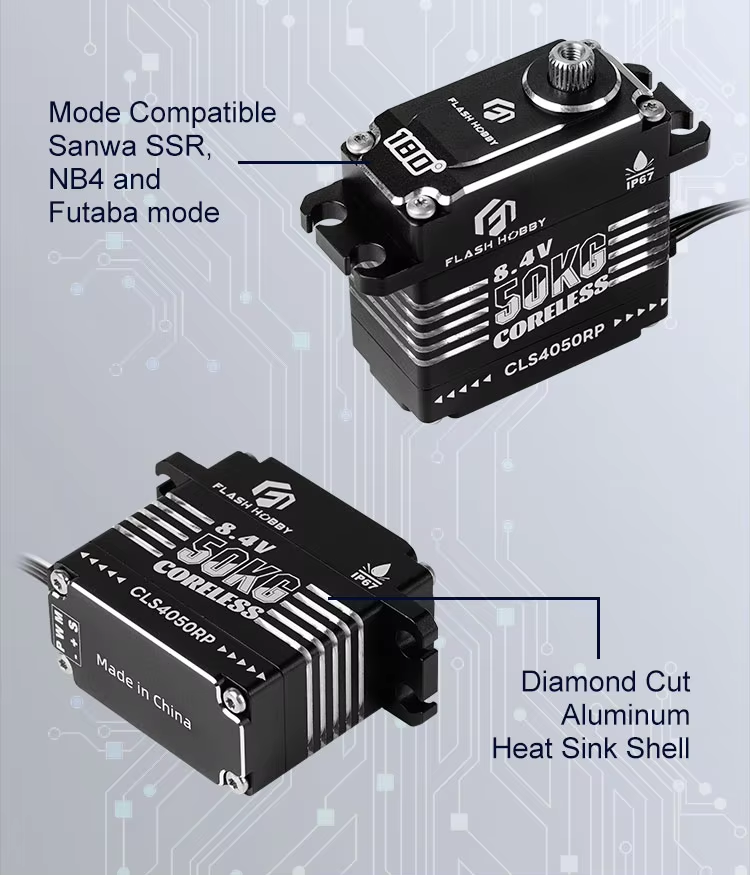

Diamond Cut Aluminum Heat Sink Shell

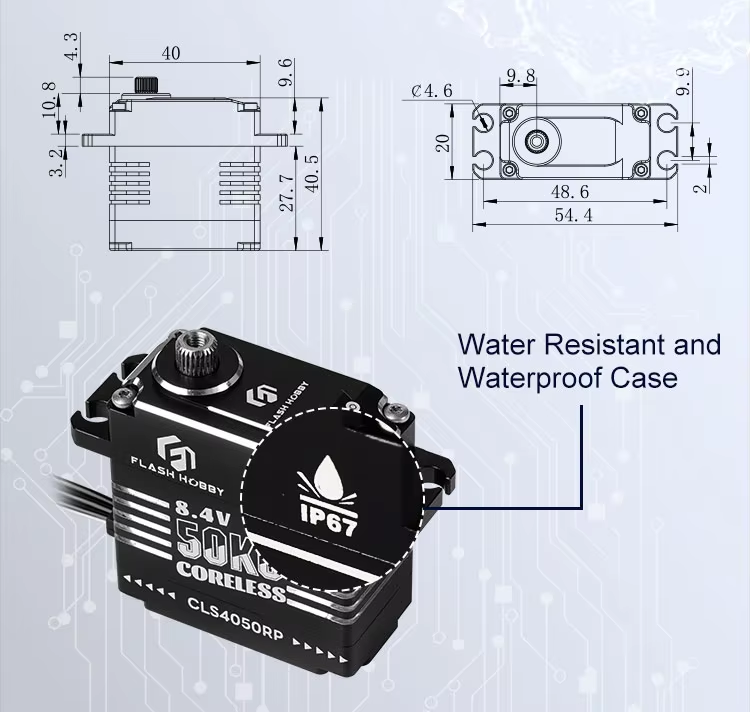

Water Resistant and Waterproof Case

Mode Compatible Sanwa SSR, NB4 and Futaba mode

Technical Specifications

Model Name	CLS4050RP

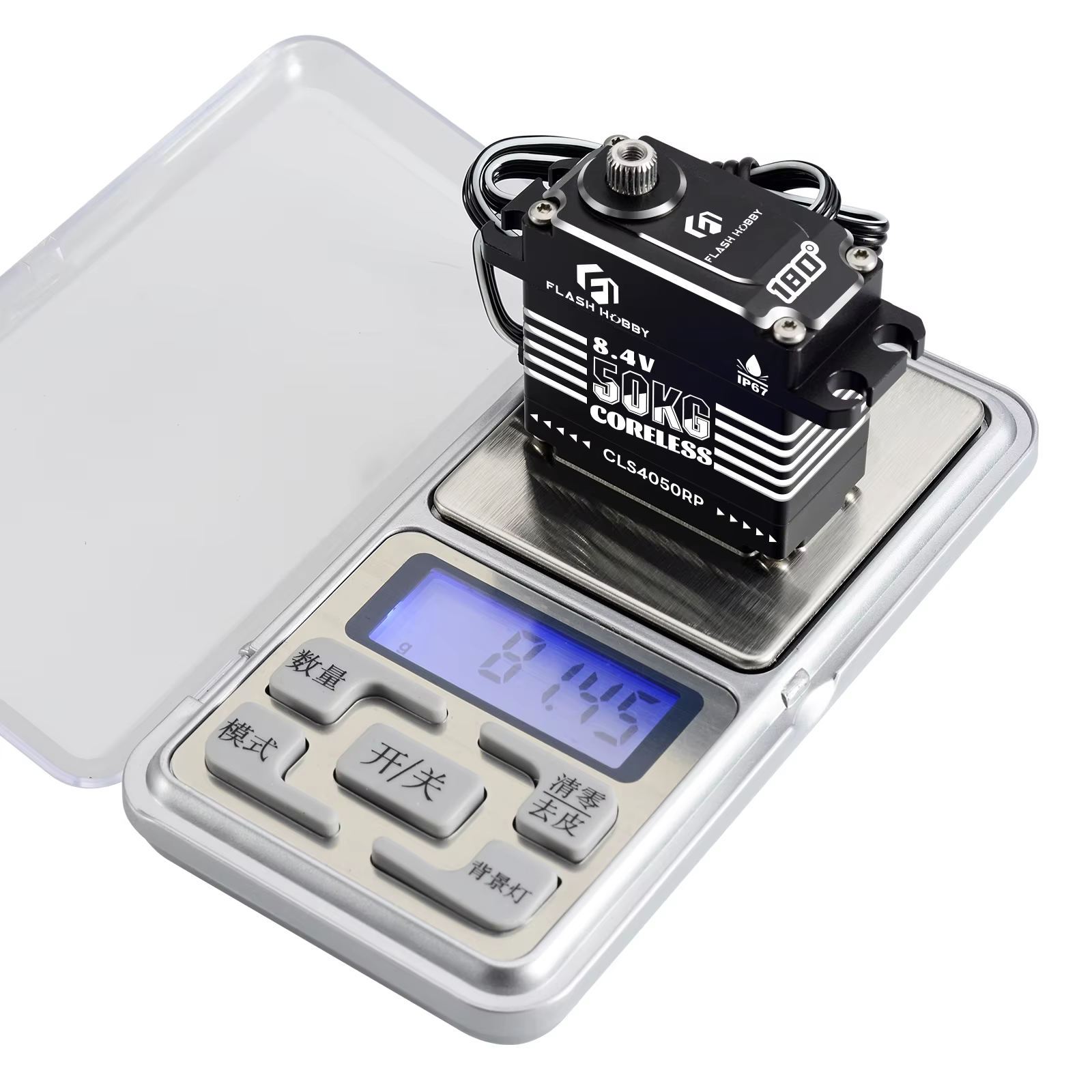

Weight	80g
Working Voltage	6.0V - 7.4V - 8.4V
Stall Torque	38KG - 45KG - 50KG-cm
Operating Speed	0.15Sec - 0.12Sec - 0.11Sec/60°
Gear Material	Titanium + Steel
Motor Type	Coreless

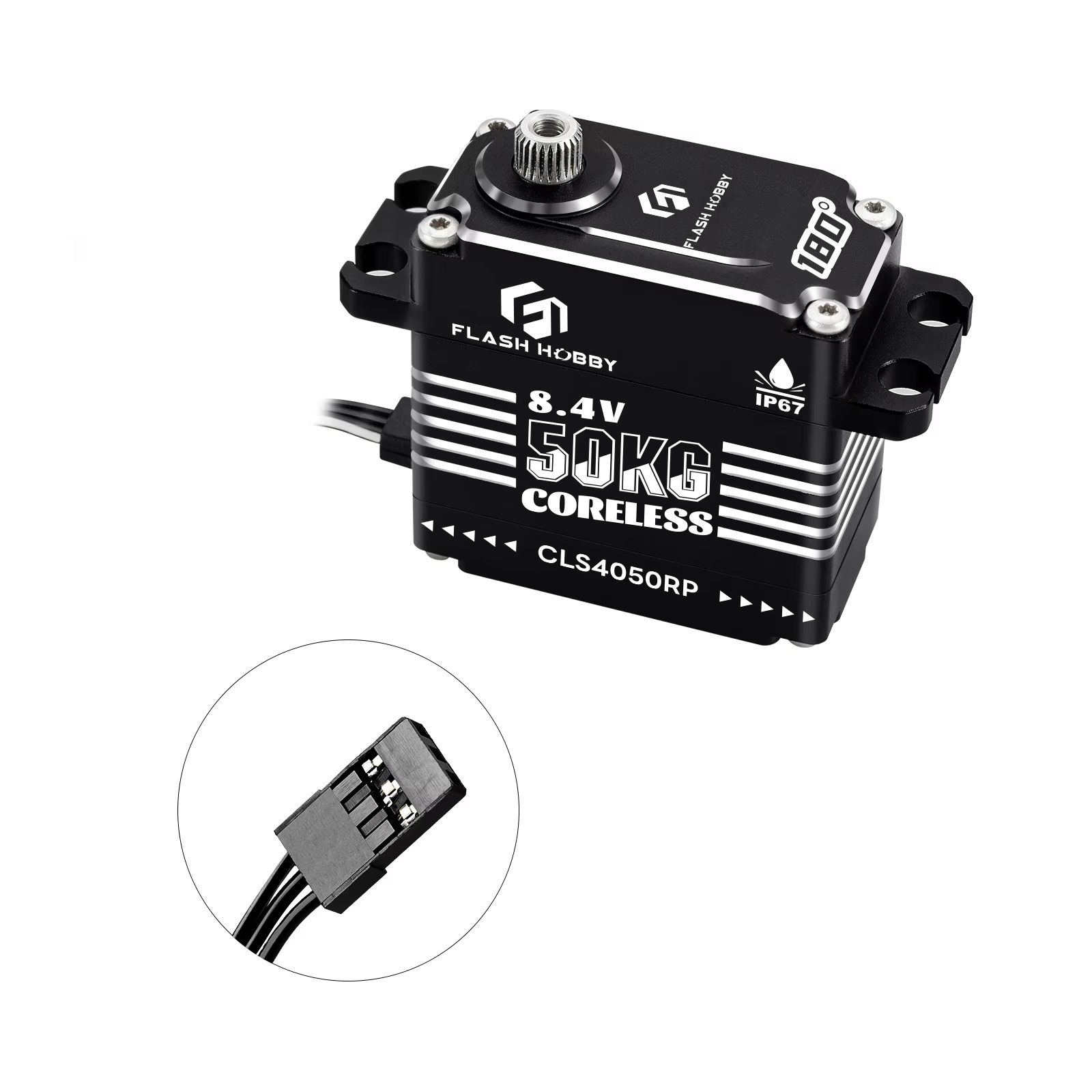

Connector Wire	300MM JR Plug

Product Display

Production & Quality Control

Certifications

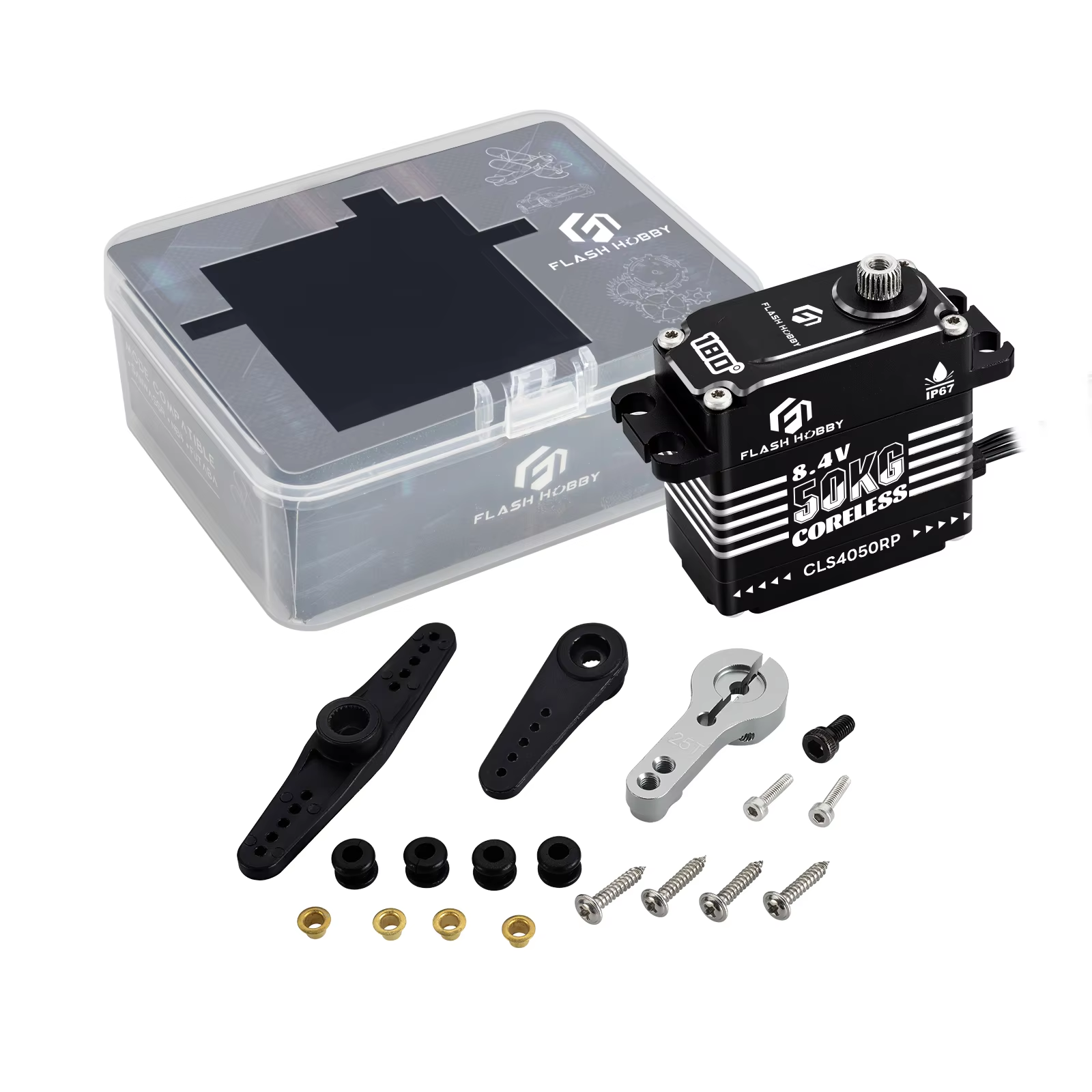

Packing & Delivery

Frequently Asked Questions

1. What is the maximum torque of the CLS4050RP servo? The servo provides a super torque of up to 50KG-cm when operating at 8.4V.

2. Is this servo waterproof for outdoor use? Yes, it features an IP67 waterproof rated case, making it ideal for RC cars and robots operating in wet conditions.

3. What voltage range does the servo support? It supports a wide operating voltage range from 6.0V DC to 8.4V DC.

4. What type of motor and gears are used? It utilizes a high-quality coreless motor combined with high-precision Titanium and Steel gears for durability and speed.

5. Is the servo compatible with professional RC radio systems? Yes, it is compatible with Sanwa SSR, NB4, and Futaba modes.

6. Can I program the settings of this servo? Yes, it features a programmable PWM digital amplifier and a 32-bit MCU for customized performance adjustments.
