| Warranty | 3months-1year |
| Model Number | MT5210 340KV |
| Usage | BOAT, Car, Electric Bicycle, FAN, Home Appliance |
| Type | Brushless Motor |
| Torque | 3750g |
| Construction | Permanent Magnet |
| Commutation | Brushless |
| Protect Feature | Waterproof |
| Speed (RPM) | 340KV |
| Continuous Current (A) | 40A~50A |
| Efficiency | IE 4 |

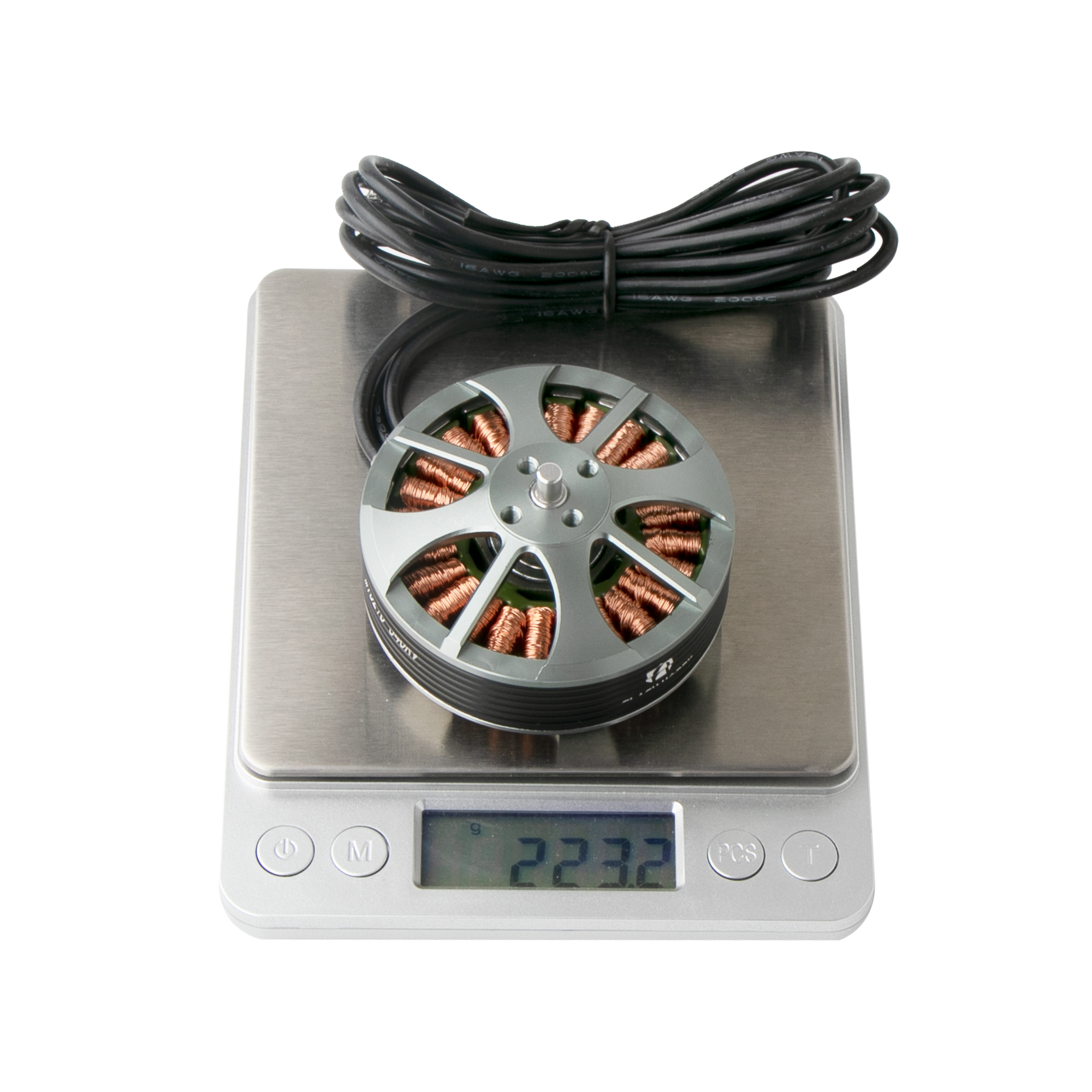

| Weight | 222.0g (including cables) |

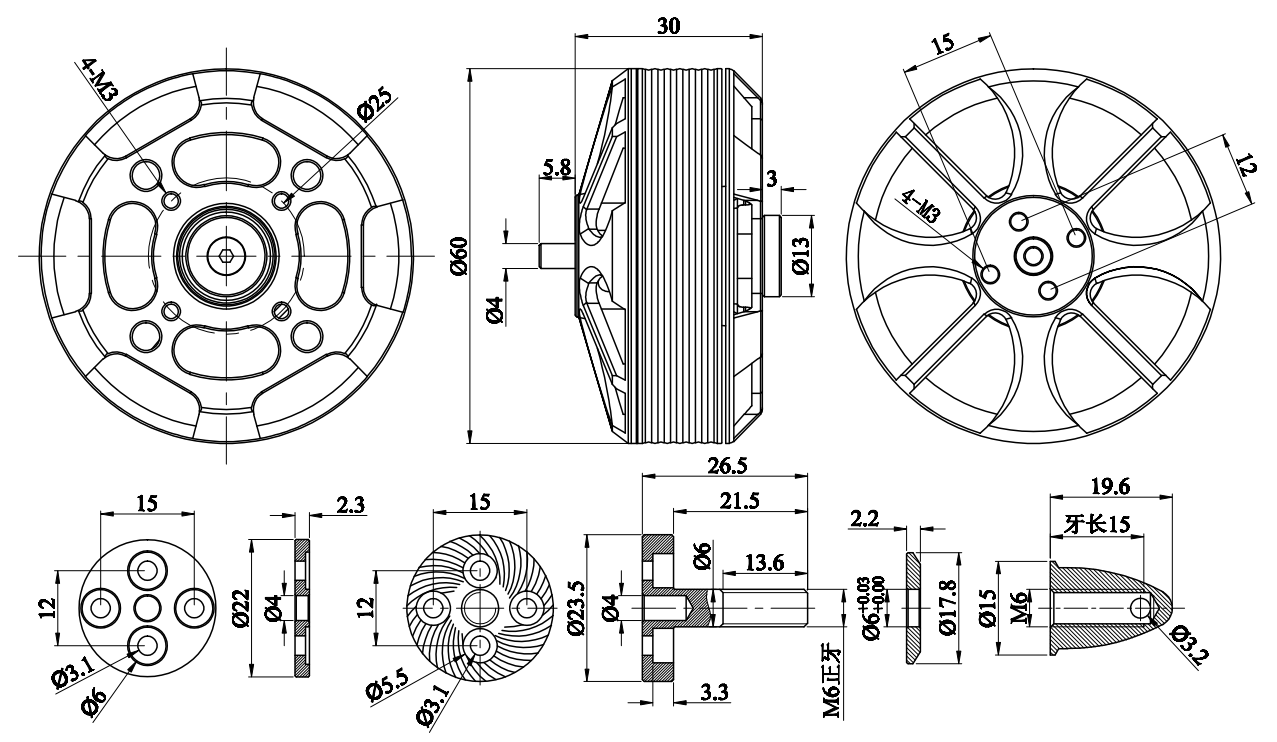

| Motor Size | 60 x 30mm |
| Shaft Diameter | 5.0mm |
| Motor Mount | 19*25mm(M3*4) |
| Configuration | 24N22P |
| Motor Cable | 18#AWG 220mm |
| Max Pull | 3750g |
| Volts | 24.0V(6S) |
| Suggested ESC | 40A~50A |
| Maximum Power | 734.4W |



Providing propulsion system solutions for UAVs with advanced technology, we specialize in Motors, ESCs (Electronic Speed Controllers), and Servos. Our products have passed ISO 9001:2015 and are widely used for aerial photography, industrial, agricultural, and commercial applications. We maintain a high reputation for high quality through strong R&D ability and professional OEM/ODM RC solutions. Our technical team brings rich experience from branded enterprises in the RC industry. We focus on flight control systems, brushless speed controllers, FOC speed controllers, outrunner brushless motors, and hall brushless motors. We take customer demands as the orientation and aim for continuous improvement of product performance and quality.
