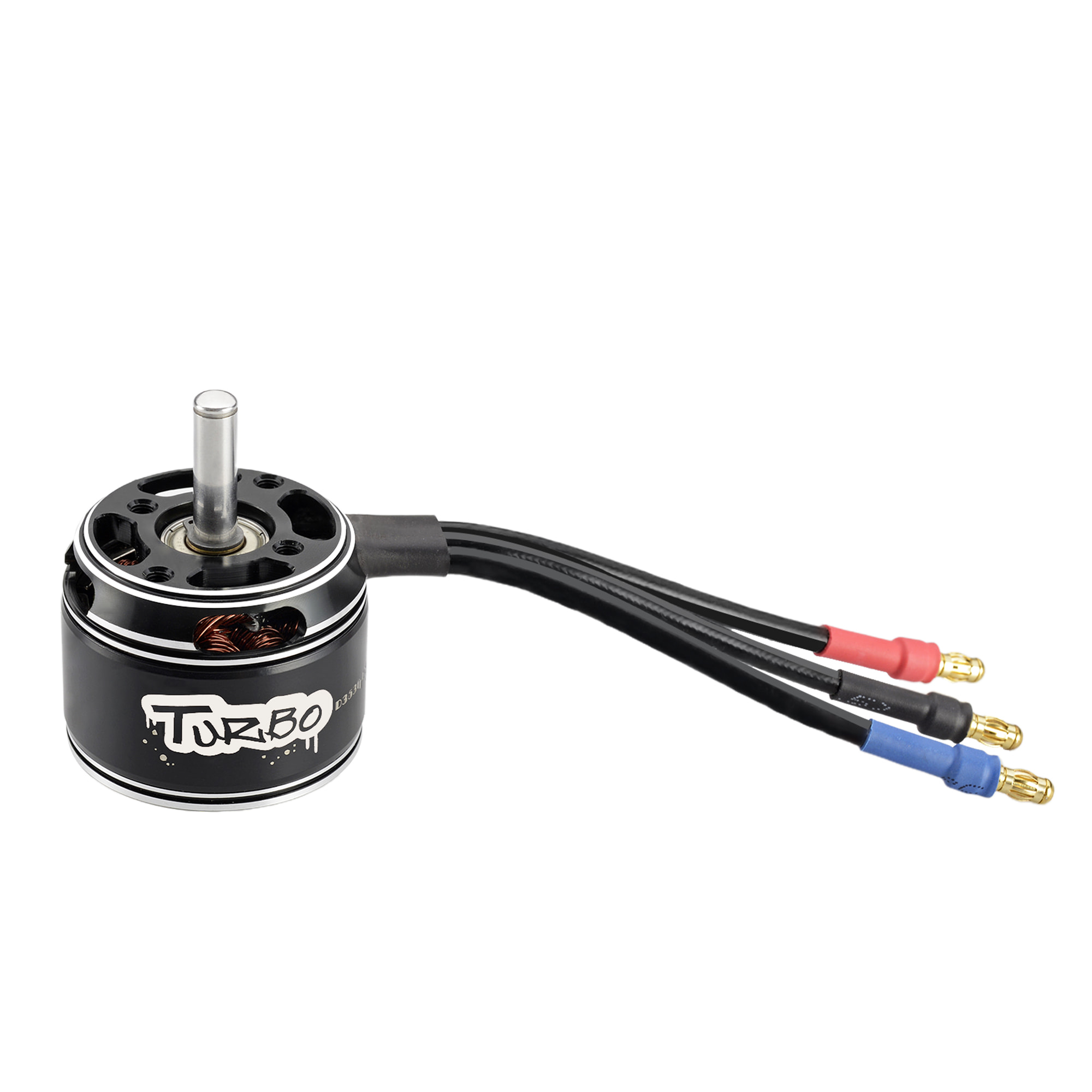

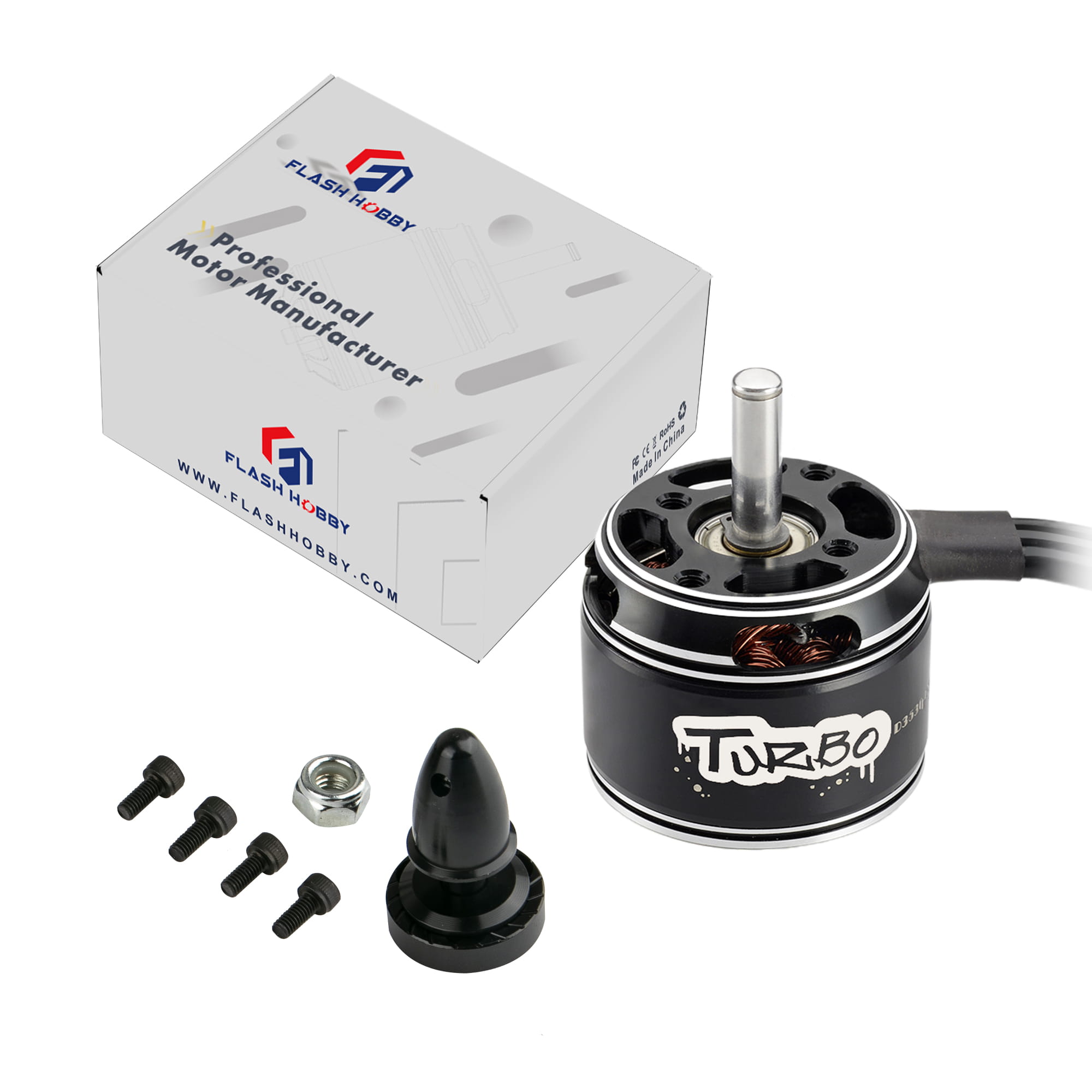

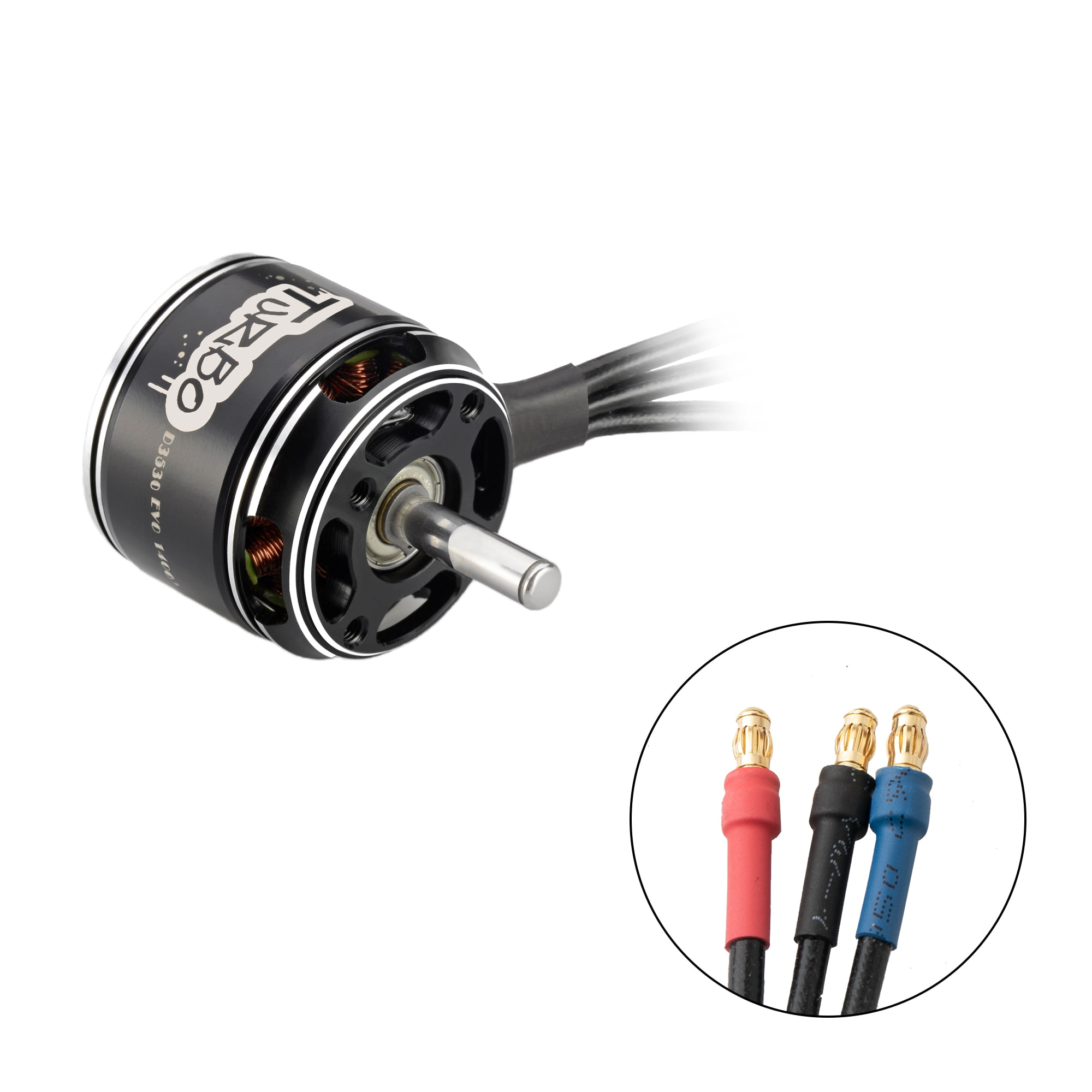

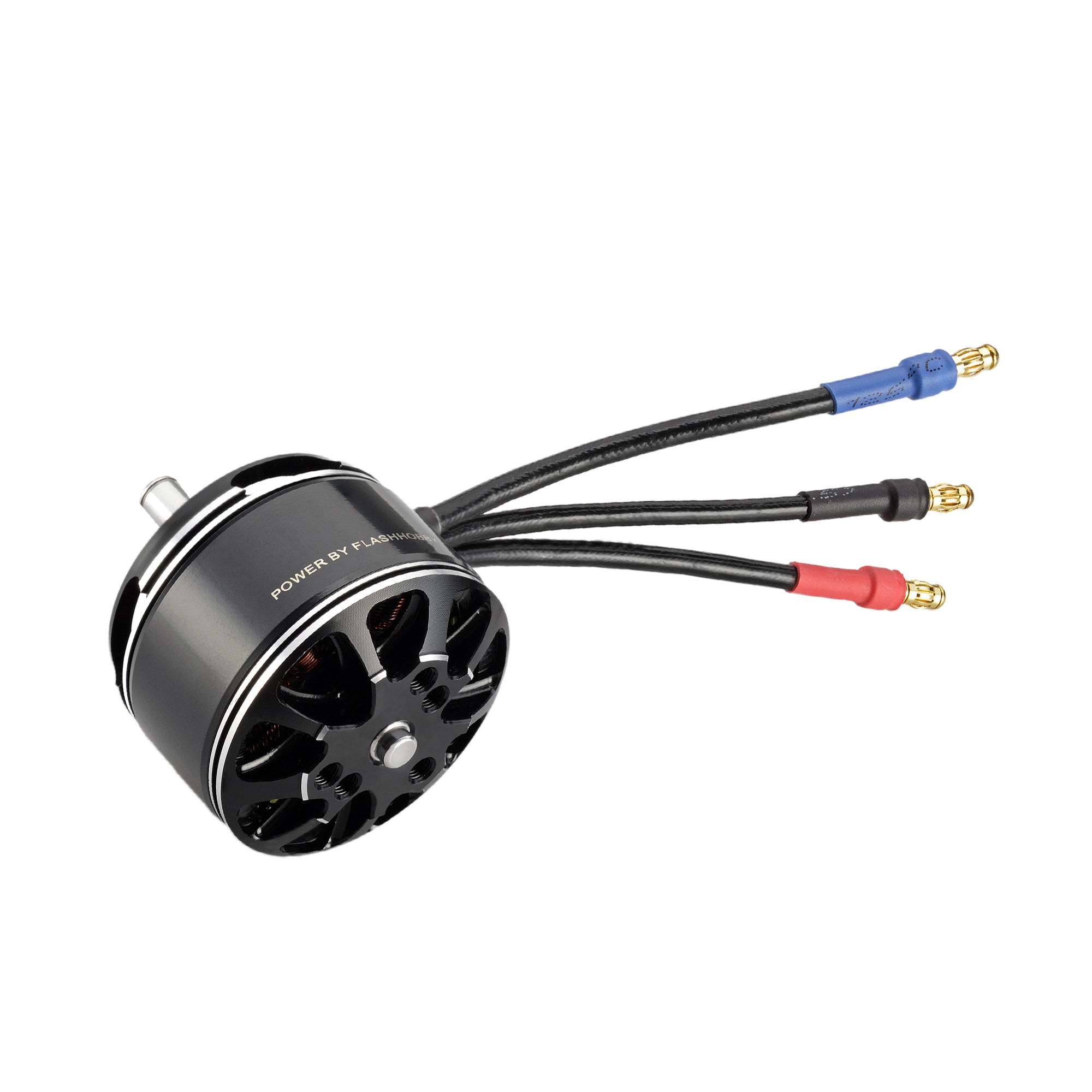

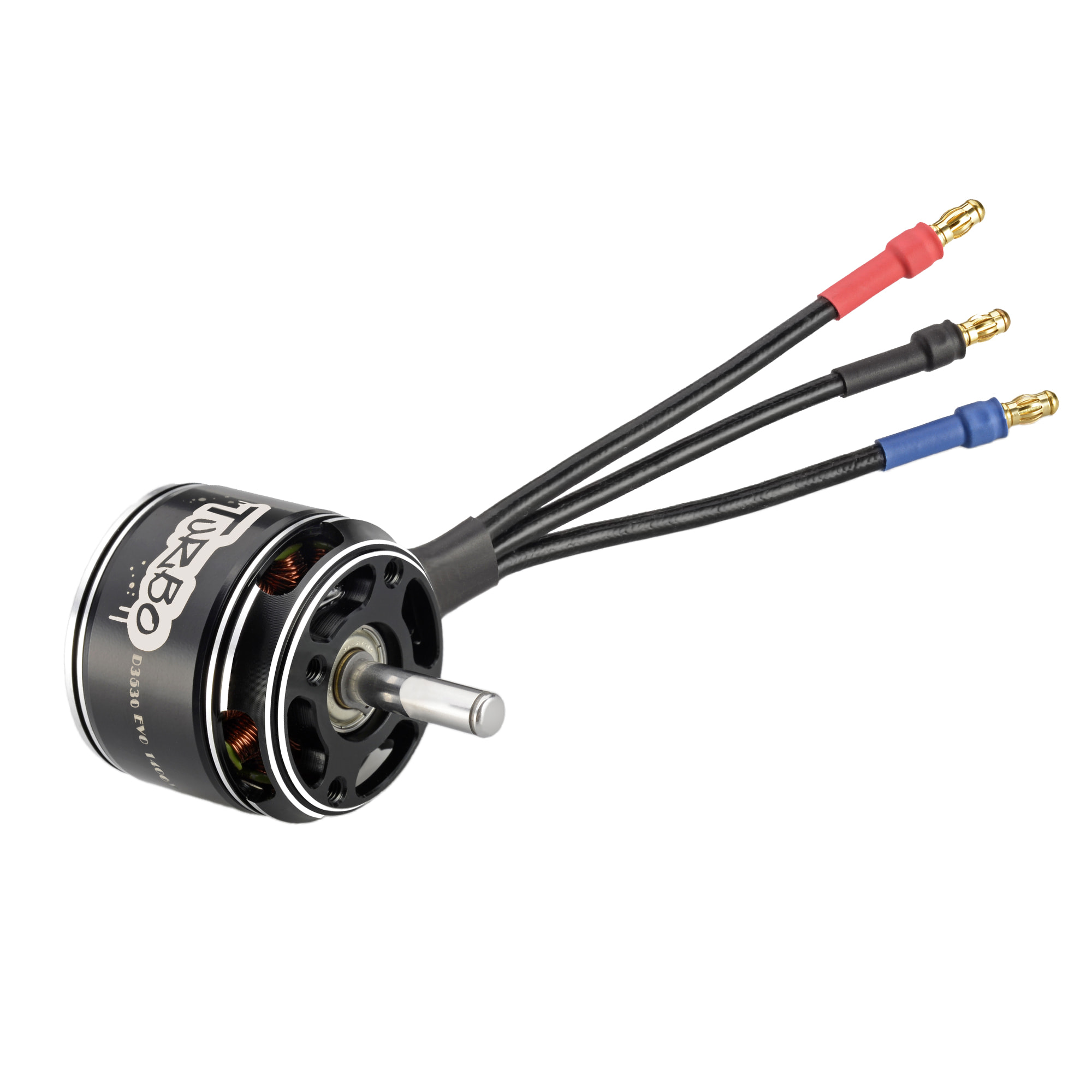

Flashhobby D3530EVO 3530 1400KV Waterproof Fixed Wing Brushless Motor for RC Planes & Cars

Product Description

Product Description
Specification
itemvalue
Warranty3months-1year
Model NumberD3530EVO
UsageBOAT, Car, Electric Bicycle, Home Appliance
TypeBrushless Motor
Torque1662G
ConstructionPermanent Magnet
CommutationBrushless
Protect FeatureWaterproof
Speed(RPM)1400KV
Continuous Current(A)42.97A
EfficiencyIE 2
Weight:75.1g(Including wires)
Motor Size:35.3 x30mm
Shaft Size:5.0*47.5mm
Configuration:12N14P
Max watts:663W
Max Current:42.97A
No Load current:1.77A/10V
Resistance:54.4mΩ
Battery:3-4S Lipo
Suggested Prop:8 inch prop
Overview & Professional Services
Providing propulsion system solutions for UAVs with advanced technology, our team specializes in Motors, ESCs (Electronic Speed Controllers), and Servos. Our products are widely used for aerial photography, industrial, agricultural, and commercial applications, obtaining a high reputation for high quality. We have strong R&D ability and confidence to provide professional OEM/ODM RC solutions for all customers since our technical team comes from famous branded enterprises with rich experience in the industry. We have been focused on all series of flight control systems, brushless speed controllers/ESC, FOC speed controllers (ESC), outrunner brushless motors, hall brushless motors and photography applications, supplying high-quality solutions for many famous brands. We take the customer demands as the orientation and take the improvement of product performance and quality as the goal of bringing more satisfying products to customers.
Certifications
Certification
Frequently Asked Questions
1. What is the warranty period for this motor?
The product comes with a warranty ranging from 3 months to 1 year.
2. Is the brushless motor suitable for outdoor use?
Yes, this motor features a waterproof design, making it suitable for various environments including BOAT and outdoor RC applications.
3. What battery and propeller are recommended for the D3530EVO?
We suggest using a 3-4S Lipo battery and an 8-inch propeller for optimal performance.
4. How do you guarantee the quality of your products?
We ensure quality through a pre-production sample before mass production and a final thorough inspection before every shipment.
5. What applications can this propulsion system be used for?
Our motors and ESCs are widely used in aerial photography, industrial, agricultural, and commercial UAV applications.
6. Do you provide customized OEM or ODM solutions?
Yes, we have a strong R&D team with rich industry experience capable of providing professional OEM and ODM solutions to meet specific customer requirements.
