Technical Specifications
| Model Number | D3530EVO |
| Warranty | 3 months - 1 year |
| Usage | BOAT, Car, Electric Bicycle, Home Appliance |
| Type | Brushless Motor |
| Torque | 1577g |
| Construction | Permanent Magnet |
| Commutation | Brushless |
| Protect Feature | Waterproof |
| Speed (RPM) | 1700KV |
| Continuous Current (A) | 44.92A |
| Efficiency | IE 2 |

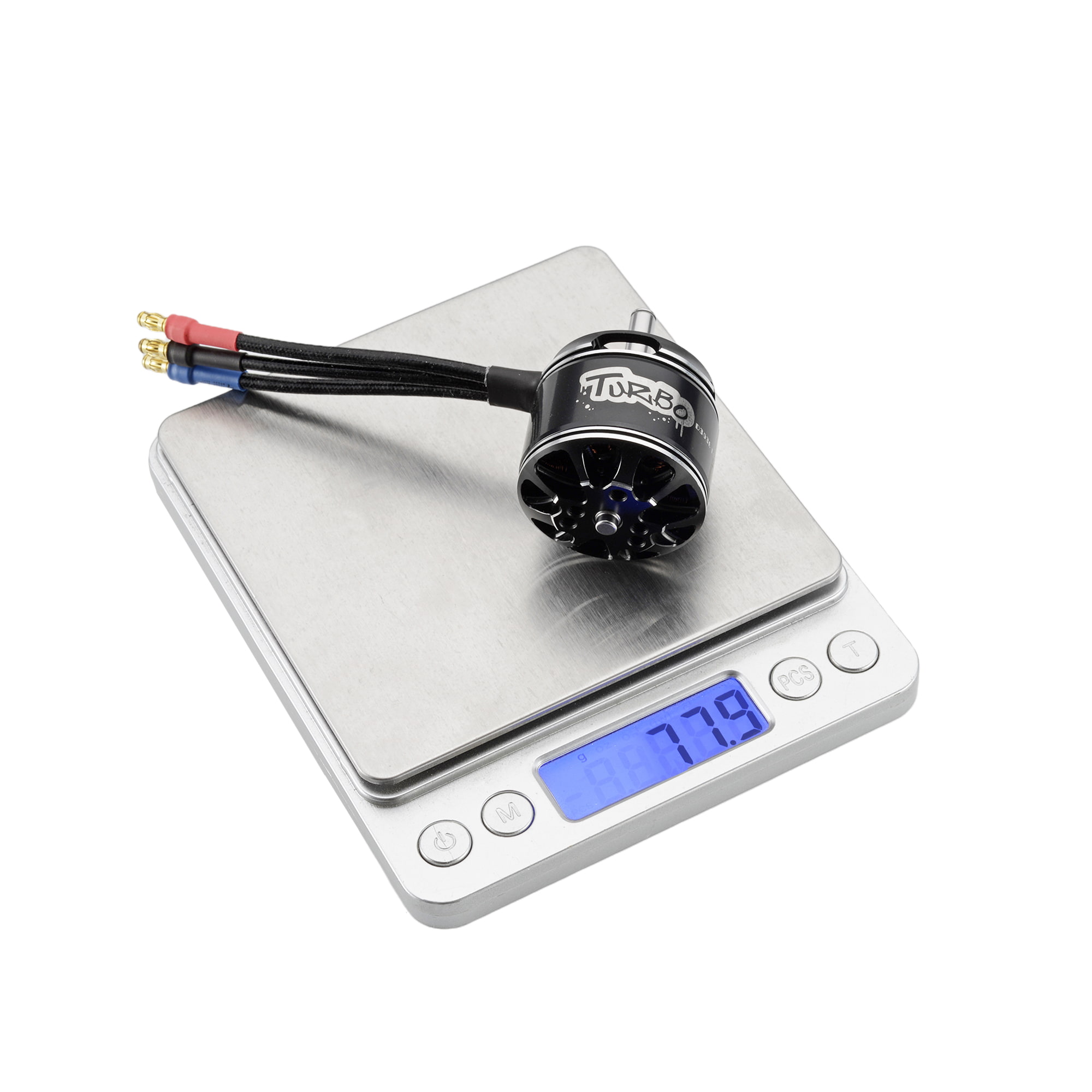

| Weight | 75.1g (Including wires) |

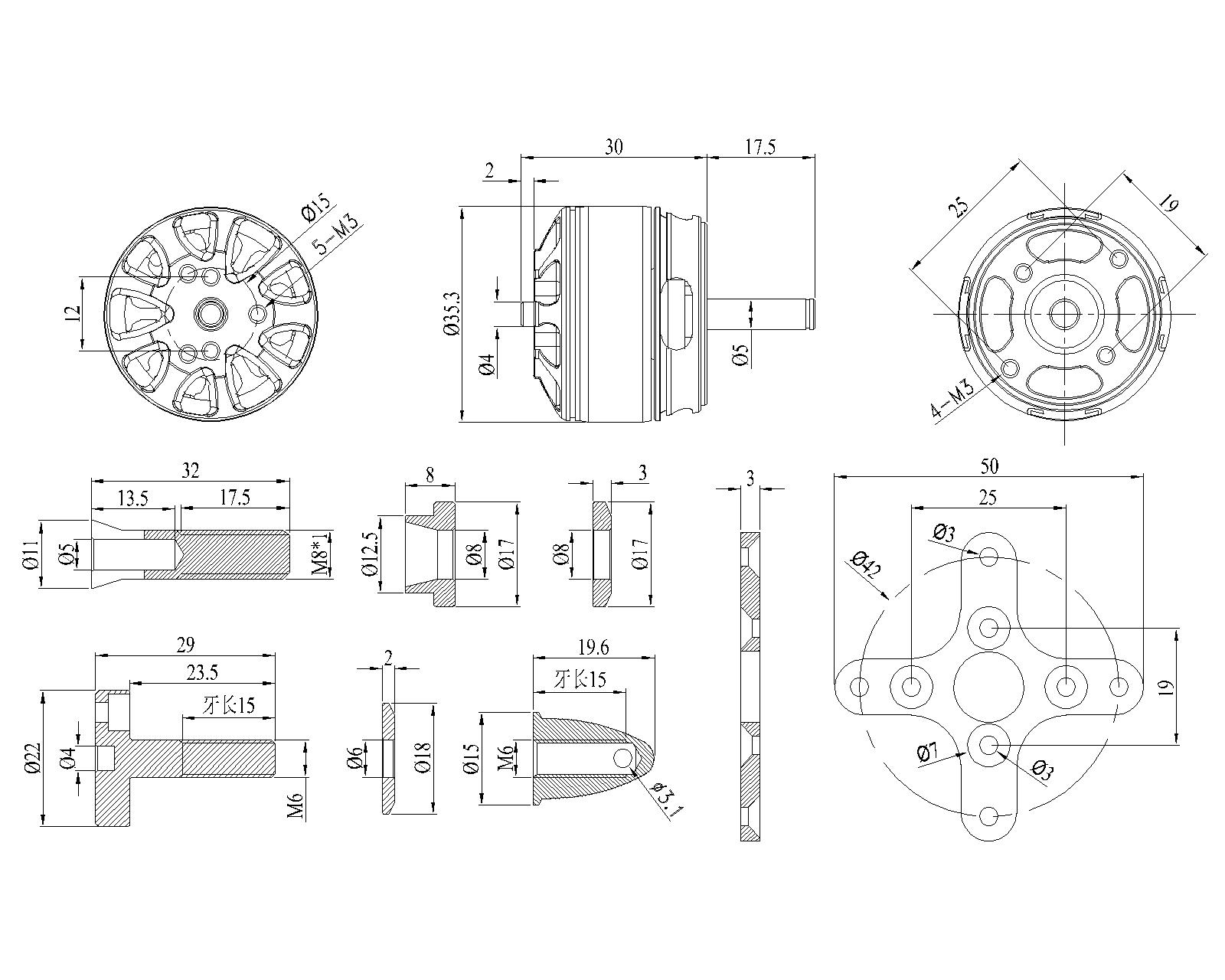

| Motor Size | 35.3 x 30mm |
| Shaft Size | 5.0 * 47.5mm |
| Configuration | 12N14P |
| Max Watts | 702.5W |
| Resistance | 34.3mĪ© |
| Battery | 3-4S Lipo |
| Suggested Prop | 7 inch prop |
Professional Propulsion Solutions
We provide advanced propulsion system solutions for UAVs, specializing in Motors, ESCs (Electronic Speed Controllers), and Servos. Our products are ISO 9001:2015 certified and widely utilized in aerial photography, industrial, agricultural, and commercial sectors. With a strong R&D background and a technical team from leading branded enterprises, we offer professional OEM/ODM RC solutions. We focus on a comprehensive range of flight control systems, brushless speed controllers, FOC speed controllers, outrunner brushless motors, and hall brushless motors, delivering high-quality performance to meet diverse customer demands globally.
ā
ISO 9001:2015 Certified
ā
Advanced FOC Technology
ā
OEM/ODM Services
ā
Industrial Grade Quality
Frequently Asked Questions
What product categories do you specialize in?
We specialize in a wide range of UAV propulsion components including Brushless motors, Brushless gearbox motors, Speed Controllers (ESC), Flight controllers, and Brushless Gimbal motors.
How do you ensure the quality of your products?
Quality is guaranteed through a strict process: we always provide a pre-production sample before mass production and conduct a final inspection for all units before shipment. Our manufacturing processes also follow ISO 9001:2015 standards.
Are your motors suitable for industrial applications?
Yes, our propulsion systems are designed for high durability and are widely used in industrial, agricultural, and commercial applications, as well as high-end aerial photography.
Do you offer customized solutions?
Absolutely. We offer comprehensive OEM and ODM services to meet specific technical requirements from our customers, backed by an experienced R&D team.
What are the accepted payment and delivery terms?
We accept various delivery terms including FOB, CIF, and EXW. Payments can be made via T/T, PayPal, or Western Union in USD, EUR, or CNY.
What technology is used in your speed controllers?
Our speed controllers utilize advanced technology, including standard brushless ESCs and high-efficiency FOC (Field Oriented Control) speed controllers for optimized flight performance.
