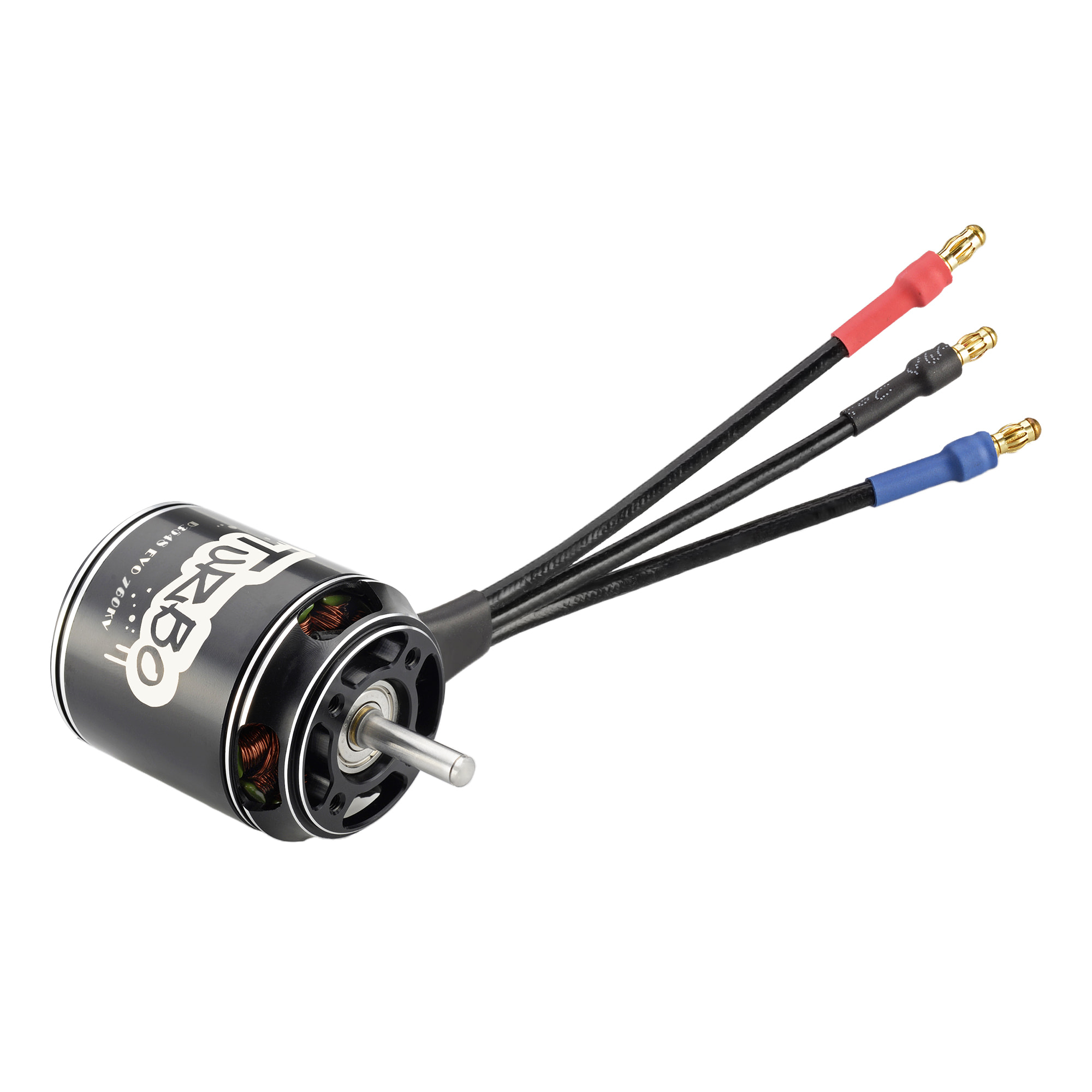

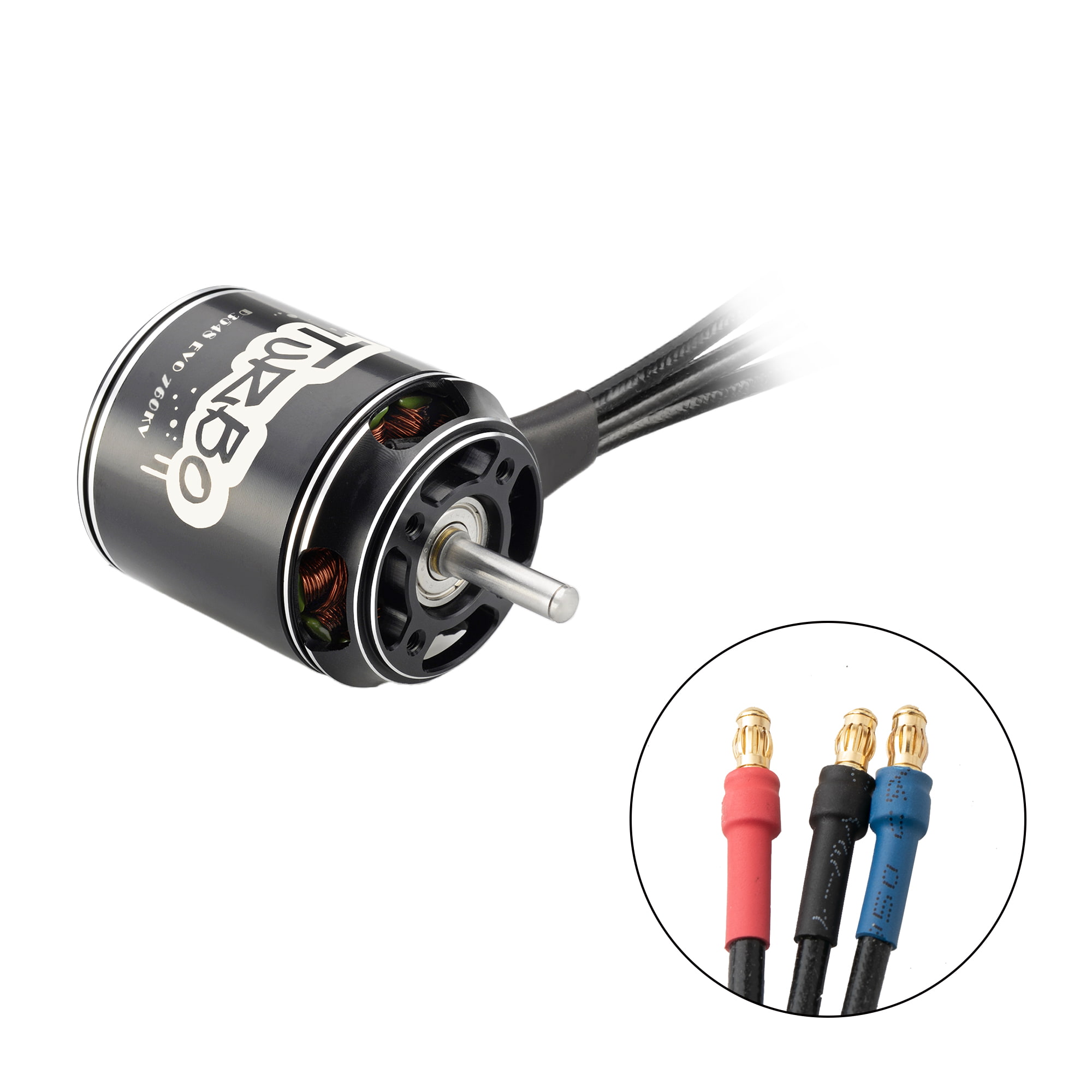

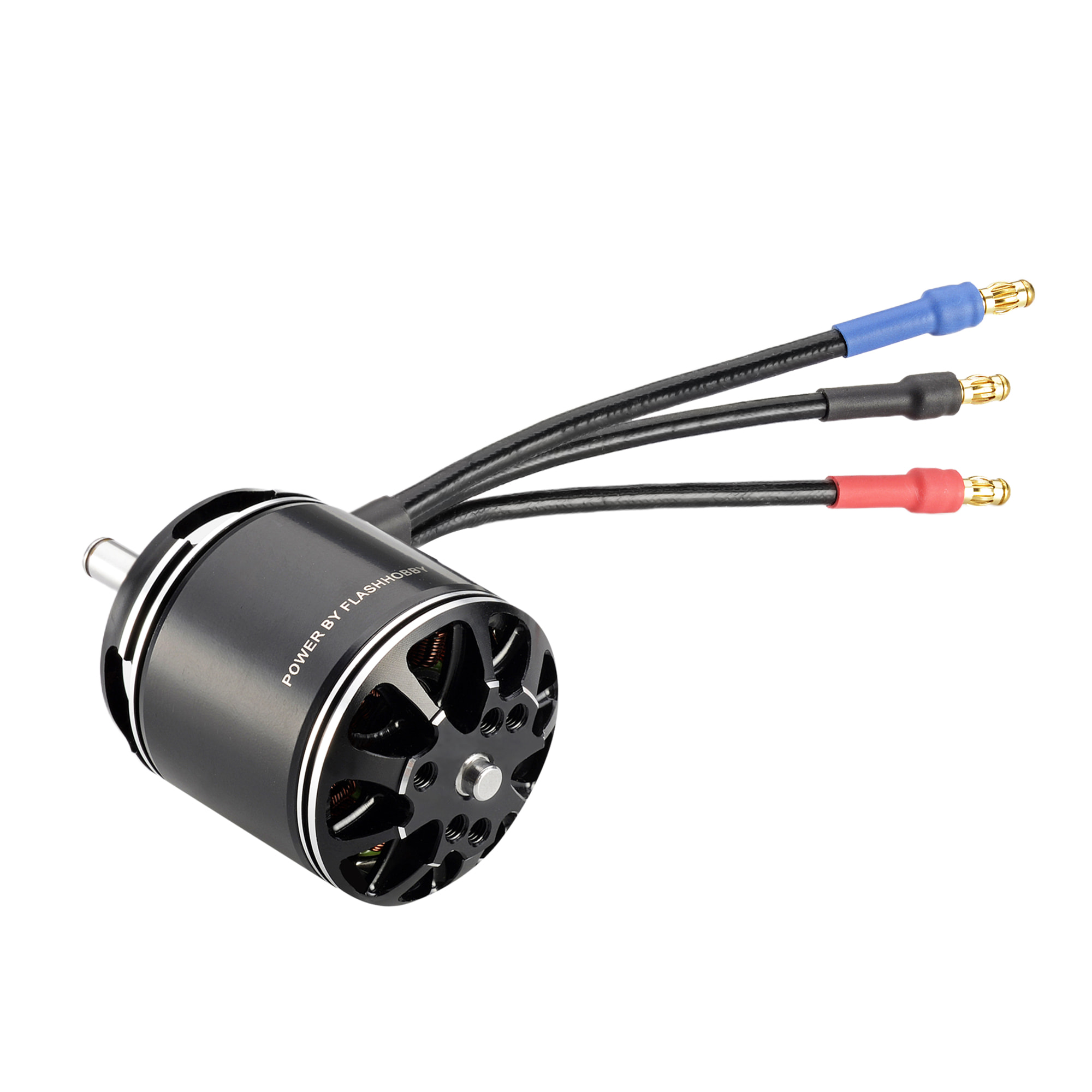

Flashhobby D3548EVO 3548 1150kv Brushless Motor for RC Helicopter RC Plane RC Toy Car Fixed Wing Home Appliance Boat

Product Description

📦 Product Description

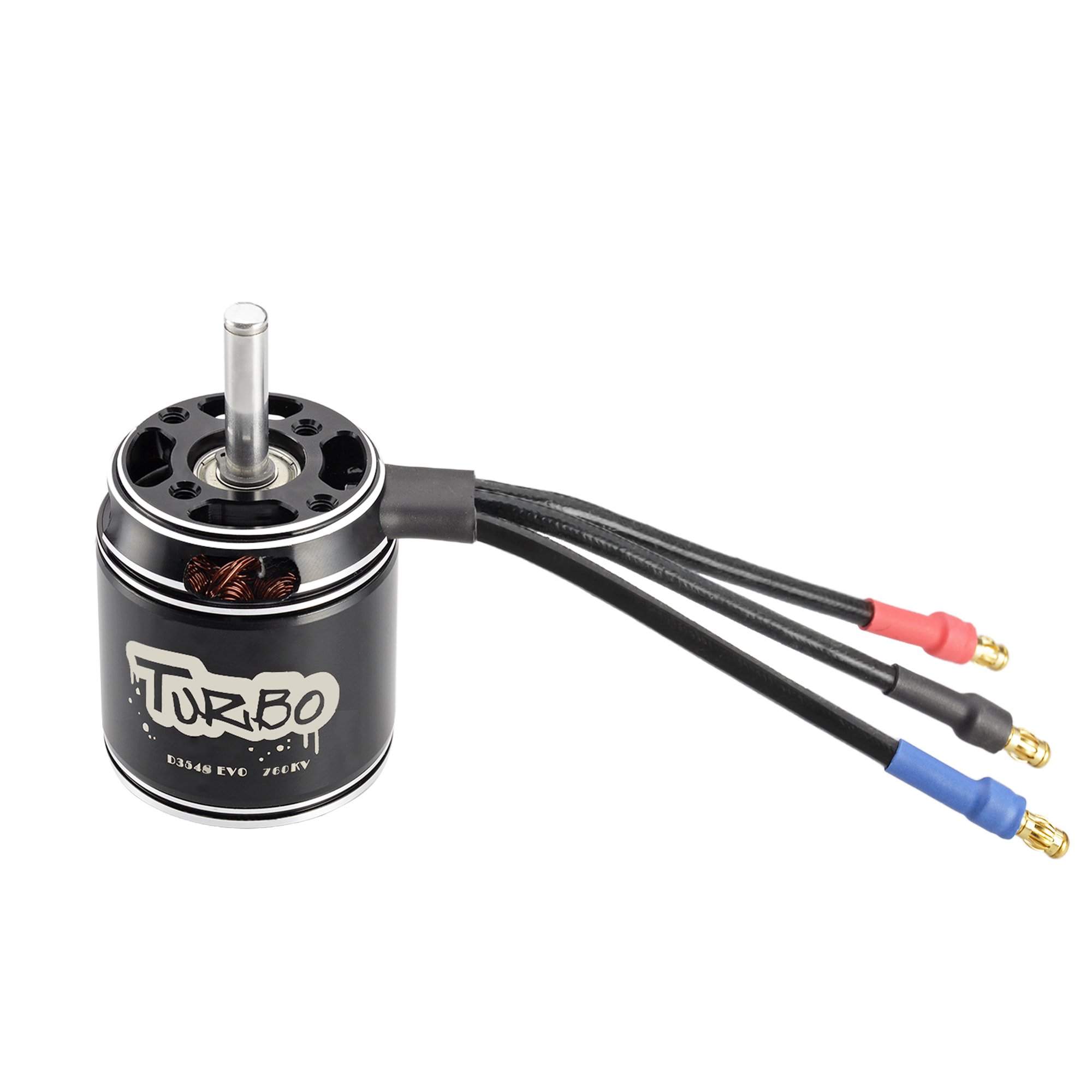

Product Image 1
Product Image 2
Product Image 3

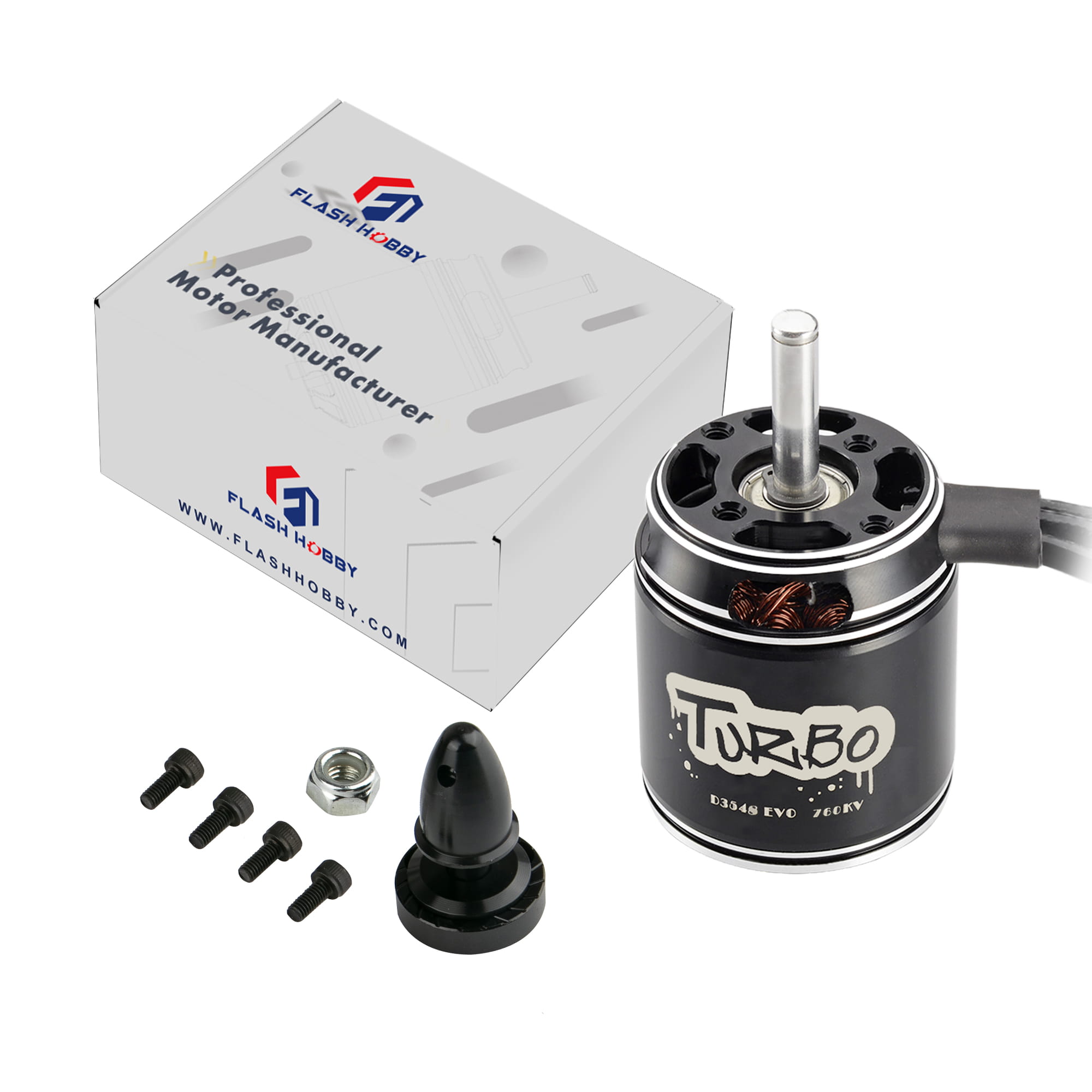

Product Image 4
Product Image 5
⚙️ Specification
Warranty3months-1year
Model NumberD3548EVO
UsageBOAT, Car, Electric Bicycle, FAN, Home Appliance
TypeBrushless Motor
Torque2241g
ConstructionPermanent Magnet
CommutationBrushless
Protect FeatureWaterproof
Speed (RPM)1150KV
EfficiencyIE 1

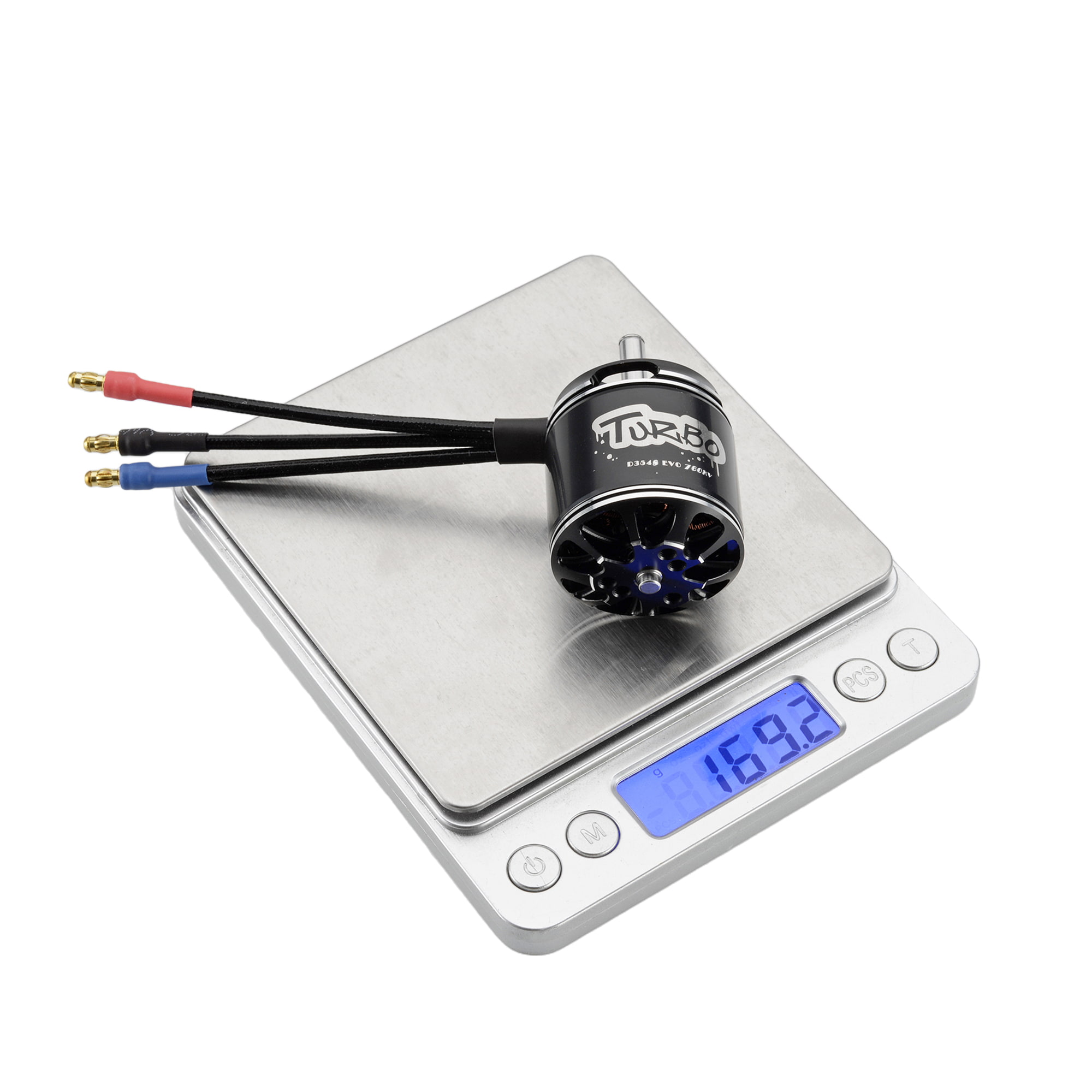

Weight170g (Including wires)
Motor Size35.3 x 48mm
Shaft Size5.0 * 65.5mm
Configuration12N14P
Max Watts623.8W
Max Current54.62A
No Load Current3.34A/10V
Resistance19.0mΩ
Battery3-4S Lipo
Suggested Prop9 inch prop
Product Highlights
Motor Feature 1
Motor Feature 2
Motor Feature 3
📜 Certifications
Certification
Frequently Asked Questions
What is the KV rating of this brushless motor?
The D3548EVO model features a speed rating of 1150KV.
Is the motor suitable for marine or outdoor use?
Yes, this motor is designed with waterproof protection features, making it suitable for boats and other outdoor applications.
What type of battery is recommended for optimal performance?
We suggest using a 3-4S Lipo battery to power this brushless motor effectively.
What are the physical dimensions and weight of the motor?
The motor size is 35.3 x 48mm, with a shaft size of 5.0 x 65.5mm. It weighs approximately 170g including the wires.
What size propeller should be used with this configuration?
A 9-inch propeller is suggested for this motor based on its 1150KV rating and torque capabilities.
What is the maximum power and current output?
The motor can reach a maximum of 623.8 Watts and a maximum current of 54.62 Amperes.
